產品概述

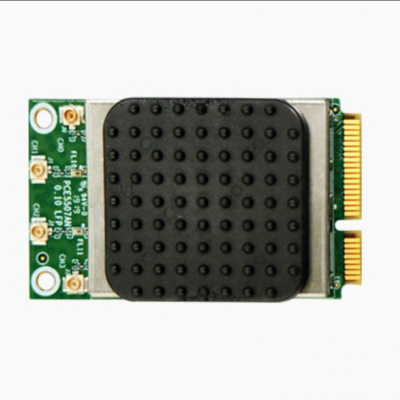

SparkLAN WPEQ-450AC 是一款高度集成的無線 LAN (WLAN)、WiFi 5 802.11ac 4×4 (4T4R) Mini-PCIE 模塊，支持具有多用戶 MIMO（多輸入多輸出）無線的 4 流 802.11ac局域網（WLAN）。它在單芯片 Mini-PCIe 模塊中集成了 4×4 (4T4R) WLAN MAC、基帶和單頻射頻。WPEQ-450AC 通過 Mini-PCIe 為 M2M（機器對機器）連接產品/設備提供了具有成本效益的解決方案，它可以輕松集成到最熟悉的操作系統（Linux）中。
WPEQ-450AC 是一款 Wave2 11ac 無線電，可幫助優質 WiFi 路由器、網關、機頂盒和范圍擴展器支持聯網家庭中的更多設備和要求更高的應用。支持80+80MHz頻道，近距離容量翻倍
適用應用
-
- • 工業電腦
- • 車載路由器
- • 車載前排
- • 機器人
- • 車載電腦
- • 戶外IPTV
- • 后終端無人機
- • 智能網關
參數特性
STANDARD
|
| WI-FI |
IEEE 802.11ac/a/n |
| Chipset |
·Qualcomm Atheros QCA9984 |
| Host Interface |
WLAN : PCIe |
RADIO
|
| Antenna |
4 x IPEX MHF1 connectors |
| Operating Frequency |
802.11ac/a/n ISM Band |
|
5.150GHz~5.850GHz
*Subject to local regulations
|
MODULATIONS
|
| 802.11n |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY
|
| WiFi |
Power – TX (± 2dBm) |
Sensitivity – RX |
| 11a @ 54Mbps |
17dBm |
≤ -72dBm |
| 11an HT20 @ MCS 7 |
16dBm |
≤ -68dBm |
| 11an HT40 @ MCS 7 |
15dBm |
≤ -66dBm |
| 11ac VHT80 @ MCS 9 |
15dBm |
≤ -56dBm |
| 11ac VHT80+80 @ MCS 9 |
14dBm |
≤-56dBm |
POWER CONSUMPTION
|
| Continue TX |
2250mA |
| Continue RX |
750mA |
ENVIRONMENTAL
|
| Operating Voltage |
DC 3.3V |
| Temperature Range |
-20~ 70°C (Operating) |
-20 ~ 90°C (Storing) |
| Humidity(Non-Condensing) |
5~ 90% (Operating) |
5 ~ 90% (Storing) |
SIZE
|
| Dimension (MM) |
50.80mm(±0.3mm) x 29.85mm(±0.3mm) x 7.8mm(±0.3mm) |
| Weight |
12.6g |
SOFTWARE
|
| Driver |
Linux |
| Security |
64/128-bits WEP, WPA, WPA2,WPA3,802.1x |
Miscellaneous
|
| Warranty Period |
12 Month |
| HS Code |
8517620050 |
認證
 |
 |
 |
 |
| USA |
EU Region |
Japan |
Canada |
環境合規
 |
 |
|
|
| ROHS |
REACH |
|
|
